Pumped Liquids
Jagdish Pump Engineering Co. non self priming centrifugal pump help pump thin, clean, non-aggressive and non-explosive liquids without solid particles or fibers.
Pump

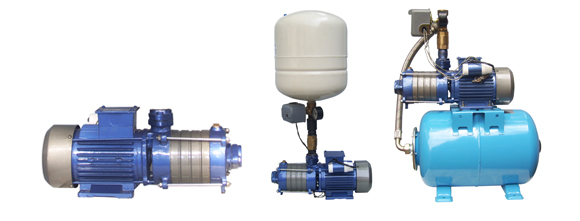

The JMLH is a non self- priming centrifugal horizontal pump with a mechanical shaft seal and extended pump/motor shaft. This non self priming centrifugal pump has axial suction port and radial discharge port and is mounted on a base plate. Impellers and diffusers are made of stainless steel. The self priming pump has standard Viton O- rings.
Motor
JMLH Series Pumps-Sectional view and parts detail.
The non self priming pump is coupled with a JPC motor, which is an enclosed, fan-cooled squirrel-cage motor.
Normal speed :2900 rpm.
Enclosure Class :IP 54.
Insulation Class :H.
Standard Voltages : 1 x 220-240V, 3 x 220-24/380 -415V.
Single-phase motors of this non self priming centrifugal pump have a built-in thermal overload protection.
Three-phase motors must be connected to a motor starter according to local
Operating Conditions
Thin, clean , non-aggressive and non-explosive liquids without solid particles or fibers.
Liquid Temperature Range : 0oC till +90oC. Max. Ambient Temperature : +55oC.
Maximum operating pressure depends on the temperature of pumped liquid.
Min. inlet pressure : According to NPSH curve +a safety margin of 1.0 m.
Max inlet pressure : Limited by max. operating pressure.
|
|
|
|
|
|
